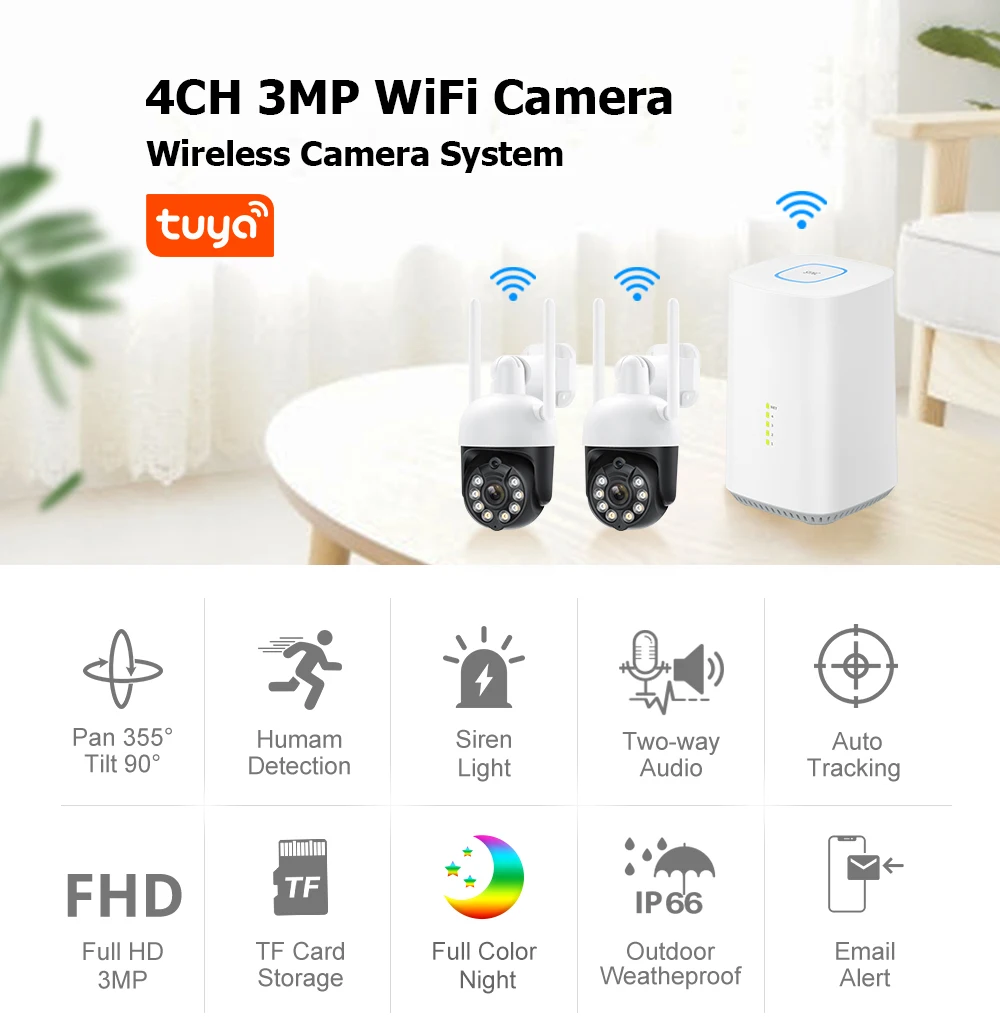

Tuya HD 3MP 4CH Mini Wireless NVR Kit Two Way Audio Video Cctv Camera Outdoor Surveillance System CCTV PTZ WIIFI IP Security Cam
Tuya HD 3MP 4CH Mini Wireless NVR Kit Two Way Audio Video Cctv Camera Outdoor Surveillance System CCTV PTZ WIIFI IP Security Cam
Regular price
€203,62
Regular price
€0,00
Sale price
€203,62
Unit price
per
Tax included.
Couldn't load pickup availability
Product Description
Main Features:
1. With The 3MP HD Resolution, And Support Intelligent Humanoid Detection.
2.The Misecu Wireless Camera System Is Suitable For a Variety Of Occasions,Such As Villa Homes, Offices, Warehouses, Workshops,Restaurants And So On.
3. Even At Night, The Misecu Waterproof Camera Can Monitor Every Corner Of The House Very Well.
4. You Can Use Your Mobile App (Android And IPhone) To Watch Everything In Your Home Remotely Anytime Anywhere. Kindly Note: The NVR Needs To Be Connected To Home Router Via One Network Cable For Remote Viewing.
5. Once a Thief Breaks Into The House, The System Will Automatically Send An Alert To Your Phone And Mailbox.

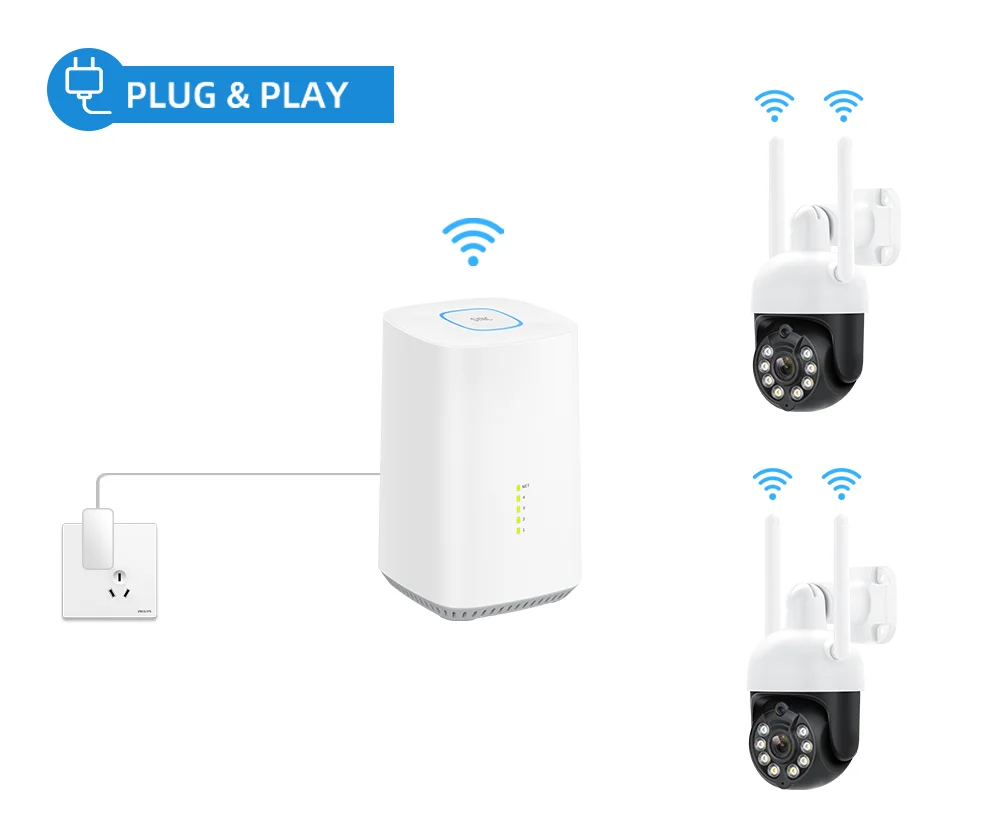

6.Wireless WiFi / Lan Cable Connection Between NVR and Cameras.
7.Plastic shell housing waterproof ip camera can be used for indoor/outdoor.
8. Support Multi Language,20+ LanguagesAvailable: Russian, English, Italian, Portuguese, Spanish, French, German Etc.
Please Note:The Wireless System Doesn't Mean You Can Use The System Without Any Cables. Power Supply Still Needed To Power On The Cameras And Nvr. (You Need Install By Yourself.)
3MP Super Clear Images
Real-time Two-way Audio Communication

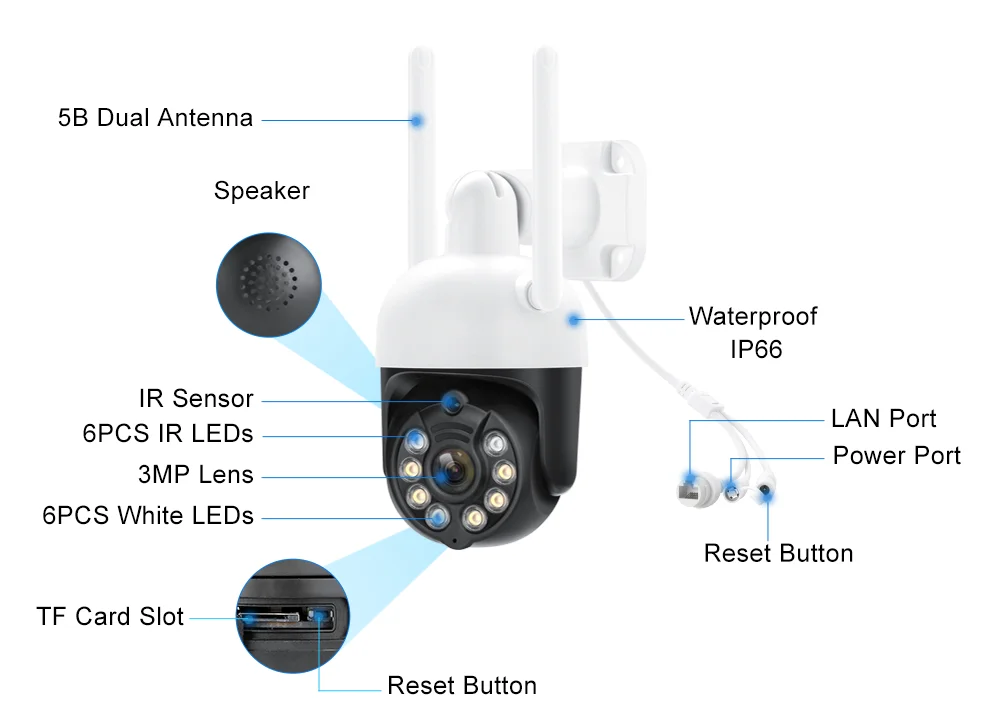

Camera has built in Microphone and Speaker.
Never miss a moment with your family.
Never miss a moment with your family.
AI Full Color Night Vision
Three lighting modes, in addition to normal daylight mode and night vision mode, when an alarm occurs at night, the camera will automatically turn on the white light to increase the exposure, providing you with color images without losing any details
Motion Detection
Support Email Alarm(needs to set in PC software), app alarm push and alarm snapshot .

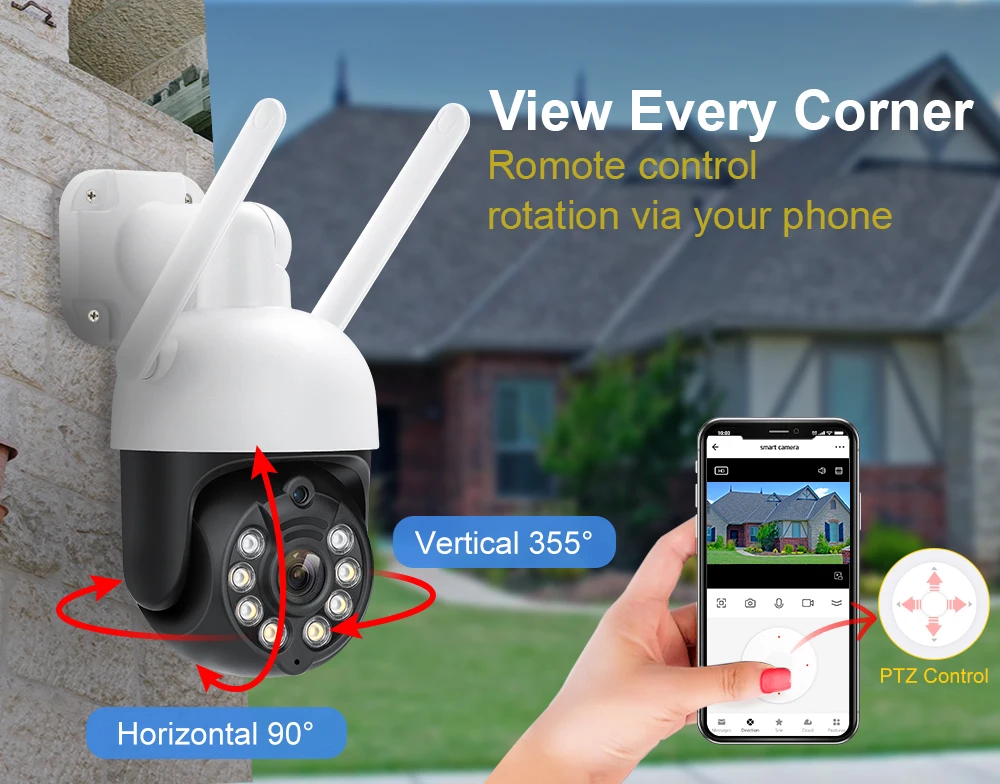

Convenient PTZ Control
This camera can rotate 355 degrees horizontally and rotate 90 degrees vertically.The mobile phone can control the rotation angle of the gimbal and see the direction you want to see.
AI Human Auto Tracking
When somebody move,the wifi camera automatically track the body.
Humanoid Detection
If the camera detects humanoid movements, the system will send out an alarm (Show message to APP, Send email, system buzzer). You can know that someone is approaching your home anytime, anywhere.

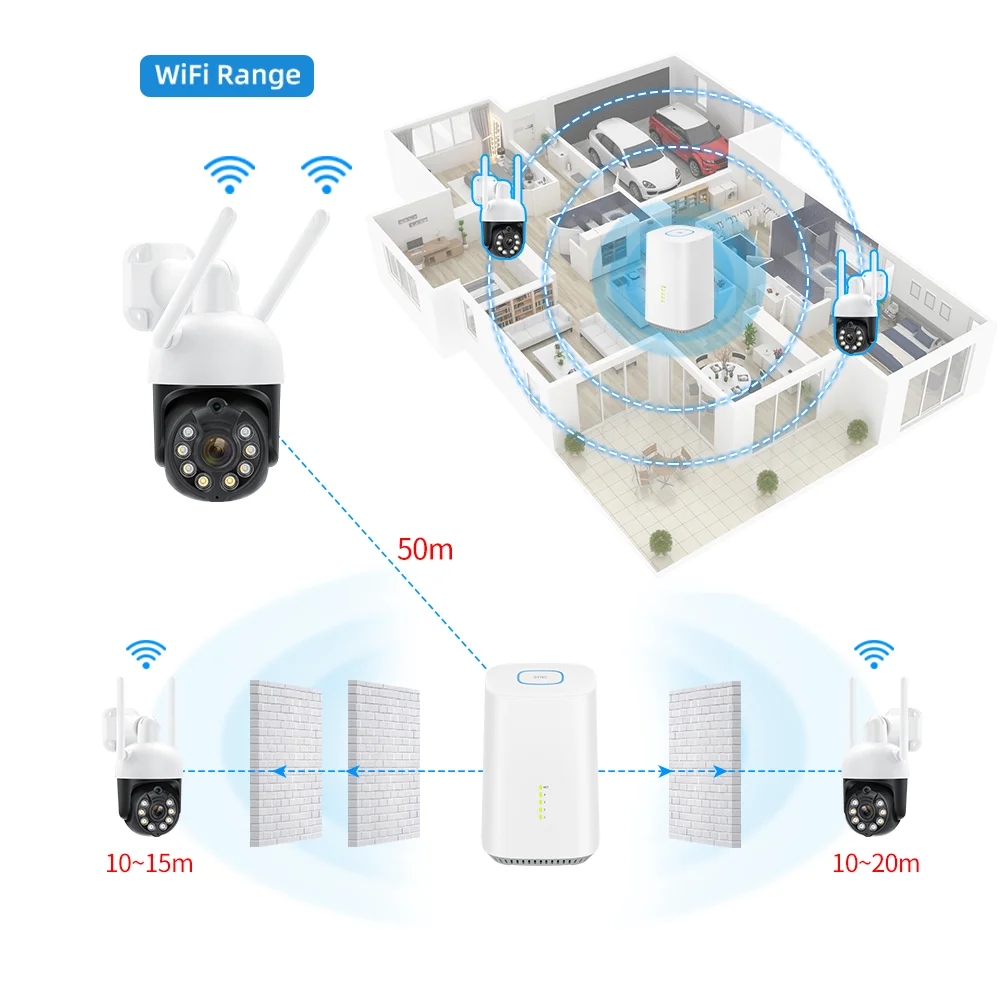

Strong wireless cascade technology
The latest WIFI cascading technology perfectly solves the problem of WIFI signal weakening and instability after long distances and through walls.
How to view on mobile ?
Set up connection between Wifi NVR and Wifi IP Camera Download free mobile APP "Tuya Smart", Add device by ID & View your Cameras anytime anywhere.
4CH Mini NVR Details

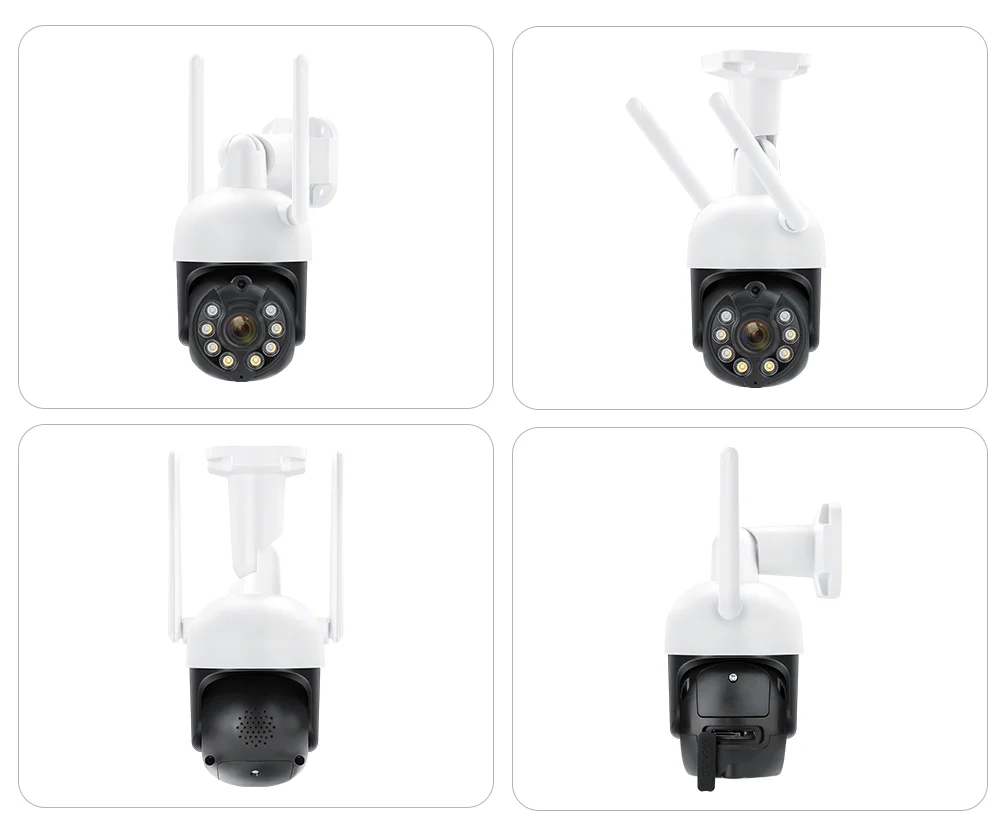

Details Images
Specification
|
Model
|
Model Type
|
3.0MP WIFI Camera
|
|
Model No.
|
JA-PT815W-30W/JA-PT815GW-30W
|
|
|
System
|
System structure
|
Embedded RTOS design, dual-core 32-bit DSP (XM530AI), pure hard compression, watchdog
|
|
Video
|
Sensor
|
3 million 1/2.8"SC3335 high performance CMOS sensor; Color 0.001Lux@F1.2, black and white 0.0001Lux@F1.2
|
|
Video processing
|
H.265AI encoding, double stream,AVI format;
|
|
|
Image output
|
Main stream: 2288*1288@12fps; Substream: 640*360@12fps
|
|
|
Shutter
|
1/50(1/60)to 1/10000 of a second
|
|
|
Noise reduction
|
2 d / 3 d noise reduction
|
|
|
Wide dynamic
|
Digital-wide dynamic
|
|
|
Lens
|
3.6mm hd lens
|
|
|
Night vision
|
IR-CUT，Infrared night vision, color filter automatically switch
|
|
|
light distance
|
Infrared 30m, white light 20m (6 white light, 6 infrared light)
|
|
|
Audio
|
Audio processing
|
G.711A Codec standard，two way audio ，audio and video synchronization
|
|
Audio interface
|
-33DB high sensitive MIC,8 euro 1 watt high quality waterproof speaker
|
|
|
PTZ
|
pan 355 degree，tilt 90 degree
|
|
|
Human tracking, guard position
|
||
|
Network
|
Network interface
|
One RJ45 Ethernet port,10/100M auto-sensing
|
|
WIFI antenna interface
|
2.4g dual WIFI antenna
|
|
|
Alarm
|
Human detection, motion detection, smart AI alarm
|
|
|
APP push, voice alarm, video recording, capture pictures
|
||
|
Video
|
Video mode
|
Timing video, event video
|
|
Playback mode
|
Event playback, time playback
|
|
|
Storage
|
Storage
|
Local TF card, up to 128G; Cloud storage
|
|
Other
|
Reliability
|
Comprehensive lightning protection in line with national and international standards，7*24 hours 65℃ high temperature test is
stable and reliable |
|
ONVIF
|
support
|
|
|
Cell phone monitoring
|
Mobile phone monitoring (iOS, Android)
|
|
|
power
|
DC12V/1A
|
|
|
Material
|
ABS
|
|
|
Reset
|
Support one-button reset function
|
|
|
Work environment
|
Temperature
|
-20℃ to +55℃
|
|
Humidity
|
30% to 80% RH
|
|
|
Package
|

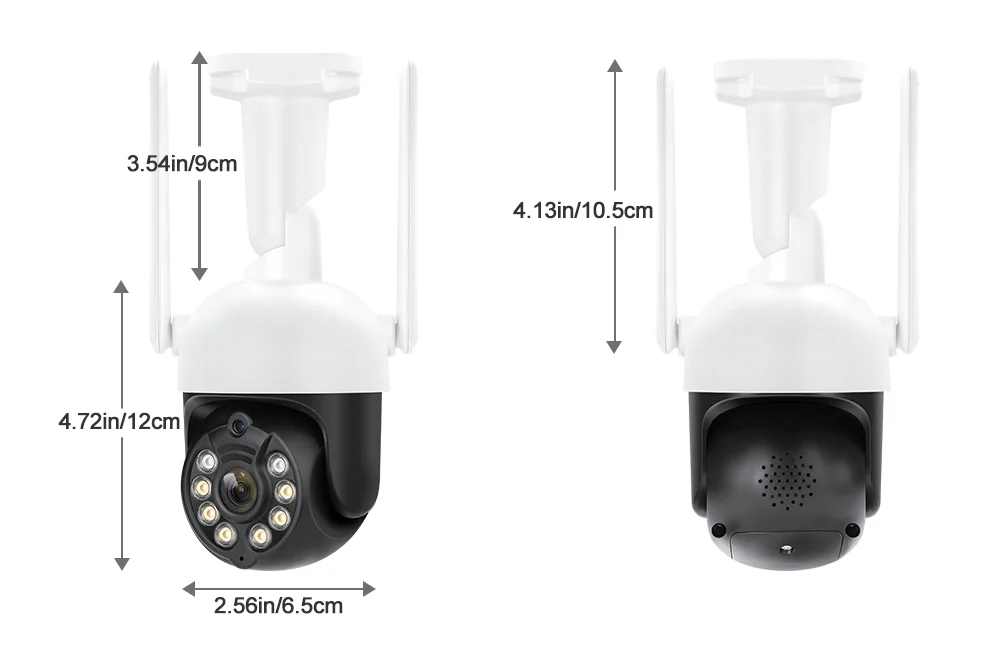

Size
|
20.5cm*16.5cm*12cm
|
|
Weight
|
0.62kg
|
|
Model
|
TY-G4H
|
||
|
Audio & Video Input
|
Network audio and video input
|
4ch
|
|
|
Audio & Video Output
|
Output
|
1 channel，resolution：1024x768，1280x1024,1440x900,1920x1080,Support Audio Output
|
|
|
Audio decoding format
|
G711A
|
||
|
Video compression standard
|
H.264/H.265
|
||
|
Video codec parameters
|
Recording Resolution
|
5MP/3MP/1080P/720P
|
|
|
Synchronous Playback
|
4 channel@3MP/2 channel@5MP
|
||
|
Recording management
|
Recording
|
micro SD card record，Cloud Storage，Alarm recording，Motion recording，timer recording，Human detection recording
|
|
|
Backup
|
U disk backup, APP playback time point video backup
|
||
|
Storage
|
SD card
|
1 MicroSD Slot；Support exfat file，Max support 256GB SD card
|
|
|
Network
|
Network interface
|
1 RJ45 10M/100M adaptive Ethernet port
|
|
|
Wireless Network
|
1 2.4G WIFI Antenna，802.11b/g/n， WPA2 encryption
|
||
|
Indicator
|
P2P Indicator
|
1 P2P Online Statu Indicator
|
|
|
Channel Indicator
|
4 Channel Connection Indicator
|
||
|
Speaker
|
1 built-in loudspeaker to broadcast equipment status
|
||
|
External interface
|
Network interface
|
RJ45 10M/100M adaptive Ethernet port
|
|
|
USB Port
|
1 USB2.0
|
||
|
TF Card Slot
|
Micro SD Slot
|
||
|
Button
|
1 Reset Button
|
||
|
Power
|
DC12V 1A
|
||
|
Others
|
Working temperature
|
-10℃--＋55℃
|
|
|
Operating humidity
|
10％--90％
|
||
|
Volume
|
85mm*85mm*127mm
|
||
|
Weight
|
0.23KG
|
||
